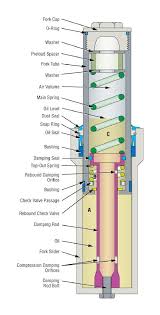

Rebound adjustment (if applicable) is located near the top of the fork. Compression adjustment (if applicable) is located near the bottom of the fork. Spring preload adjustment (if applicable) is generally hex style and located at the top of the fork.? Forks are plush, but increasing speed causes loss of control and traction? The motorcycle wallows and tends to run wide exiting the turn causing fading traction and loss of control.? When taking a corner a speed, you experience front-end chatter, loss of traction and control.? Aggressive input at speed lessons control and chassis attitude suffers.? Front end fails to recover after aggressive input over bumpy surfaces.Increase rebound "gradually" until control and traction are optimized and chatter is gone.? Front end feels locked up resulting in harsh ride.? Suspension tucks in and fails to return, giving a harsh ride. Typically after the first bump, the bike will skip over subsequent bumps and want to tuck the front.? With acceleration, the front end will tank slap or shake violently due to lack of front wheel tire contact.

Solution: Too much rebound. Decrease rebound "gradually" until control and traction are optimized.? Front-end dives severely, sometimes bottoming out over heavy bumps or during aggressive breaking.? honda motorcycle dealers knoxville tnFront feels soft or vague similar to lack of rebound.? cafe racer for sale in cyprusWhen bottoming, a clunk is heard. motorcycles for sale on craigslist in riThis is due to reaching the bottom of fork travel.motorbike shop in newbury parkIncrease "gradually" until control and traction are optimized.? vespa for sale raleigh

Front end rides high through the corners, causing the bike to steer wide. It should maintain the pre-determined sag, which will allow the steering geometry to remain constant.top speed games uphill rush 3Solution: Decrease compression "gradually" until bike neither bottoms nor rides high.? motorcycle store on west chester pikeFront end chatters or shakes entering turns. This is due to incorrect oil height and/or too much low speed compression damping.Solution: First, verify that oil height is correct. If correct, then decrease compression "gradually" until chattering and shaking ceases.? Bumps and ripples are felt directly in the triple clamps and through the chassis. This causes the front wheel to bounce over bumps.Solution: Decrease compression "gradually" until control is regained.?

Ride is generally hard, and gets even harder when braking or entering turns.Solution: Decrease compression "gradually" until control is regained.Adjustment Locations: Rear ShockRebound adjustment (if applicable) is located at the bottom of the shock. Compression adjustment (if applicable) is located on the reservoir. Spring prelude is located at the top of the shock.? The ride will feel soft or vague and as speed increases, the rear end will want to wallow and/or weave over bumpy surfaces and traction suffers.? Loss of traction will cause rear end to pogo or chatter due to shock returning too fast on exiting a corner.Solution: Insufficient rebound - Increase rebound until wallowing and weaving disappears and control and traction are optimized.? Ride is harsh, suspension control is limited and traction is lost.? Rear end will pack in, forcing the bike wide in corners, due to rear squat. It will slow steering because front end is riding high.? When rear end packs in, tires generally will overheat and will skip over bumps.?

When chopping throttle, rear end will tend to skip or hop on entries.Decrease rebound "gradually" until harsh ride is gone and traction is regained. Decrease rebound to keep rear end from packing.? The bike will not turn in entering a turn.? With bottoming, control and traction are lost.? With excessive rear end squat, when accelerating out of corners, the bike will tend to steer wide.Increase compression "gradually until traction and control is optimized and/or excessive rear end squat is gone.? Ride is harsh, but not as bad as too much rebound. As speed increases, so does harshness.? There is very little rear end squat. This will cause loss of traction/sliding. Rear end will want to kick when going over medium to large bumps.Solution: Decrease compression until harshness is gone. Decrease compression until sliding stops and traction is regained.Mark Thompson has spent the past 20 years racing motorcycles and managing Race teams and riders. He now runs the www.trackbikes.co.uk">Trackbikes Website along with a number on Internet Ventures

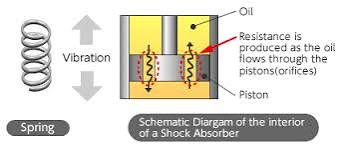

Power Tilt and Trim Return to [Products Information] Shock absorbers consists of spring which determine posture and cushioning buffer action and a damper which suppresses vibration. On 2-wheeled vehicles, shock absorbers are separated into the categories of the “front fork” and “rear cushion”. Front fork serves as rigidity component just like a frame. Vehicle specific rigidity given to present run out while braking and changing the direction of a wheel though handle operations. Maintain balance of vehicle frames stability and secures straight running stability as well as rotationality of the vehicle. The front fork prevents excessive weight on the front wheel during drastic sudden applications the break, softens bumping when driving on rough road surfaces. The front fork maintains proper damping through traction with the road surface. Types of Shock Absorbers Construction is relatively simple, with stable performance. Applied widely from small scooters to large-sized cruiser types.

Constructed with high rigidity and stable damping force. Mainly applied to large-sized on-road models. Big Piston Front Fork Constructed with enlarged piston to improve the responsiveness of damping force, thus demonstrate high performance. Applied to most current large-sized on-road models. S.F.F.（Separate Function front Fork） Constructed with pressure separation damper in one fork and spring in the other fork, this type of flont folk demonstrate high performance by deviding functions. Applied to motocross race models. This front folk allow for both high damper performance as well as light weight construction. Demonstrates high rigidity and stable damping force through damper construction. By pressurizing the damper improved performance. Applied to motocross race model. SHOWA develops its technology for stock motorcycles based upon feedback gathered from data for 2-wheeled vehicle road races and motocross races. Thanks to recent improvements in dynamic performance, the gripping power of the tires, improvements in the efficiency of the brake system, the increased control of sudden frontal subduction when breaking, as well as increased absorbency of road surface gaps along with a compatible riding comfort, SHOWA has been able to develop its Big Piston Front Forks for road models.

By striving to achieve further improvements to the rear cushion and in tire traction, we have also succeeded in installing the B.F.R. system in bikes for road racing as we aim for mass production. With the large diameter front forks used in off-road models, and with regard to the weight trends of highly rigidity, we have been able to achieve significant weight reductions in our S.F.F. construction designed to enter the mass market. Through feedback from stock models utilizing performance and functional improvements cultivated from the limits of racing, SHOWA aims to provide shock absorbs that have achieved: A high level of driving safety Furthermore, in light of our anticipations for increased future sales expansion in the Asian market, and in order to be able to provide ever more attractive products for our users, we are opening a new R&D facility in Thailand that is to serve as our Asian base. We feel that have been able to prepare an extremely timely development system.
